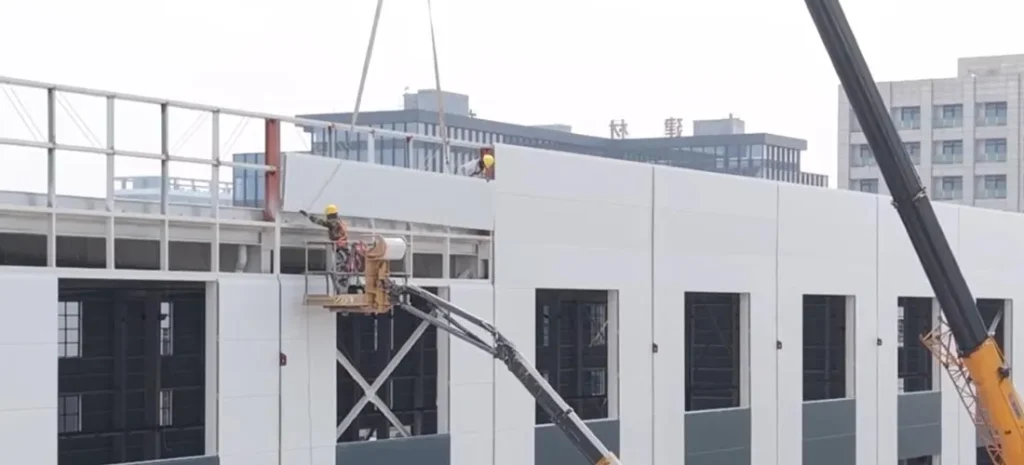

Steel Structure and Sandwich Panel

1. What is a Steel Structure?

A steel structure is a load-bearing structural system made of steel materials (typically structural sections, steel plates, steel pipes, etc.) connected by welding, bolting, or riveting.

Think of it as the “skeleton” of a building. Just like a human skeleton supports the body, the steel structure supports the entire building, bearing all the weight and loads (such as wind, snow, and seismic loads).

Key Characteristics:

1. High Strength, Light Weight: Steel has a much higher strength than concrete and wood. Therefore, steel members can be smaller and lighter while carrying the same load, allowing for large-span spaces and reducing the burden on the foundation.
2. Good Toughness, Excellent Seismic Performance: Steel has good plasticity and toughness, allowing it to absorb a significant amount of energy under dynamic loads (like earthquakes) without sudden fracture, ensuring high safety.
3. Fast Construction Speed: Components are typically prefabricated in factories with high precision and consistent quality. They are then assembled on-site like “building blocks,” significantly shortening the construction cycle.
4. Environmentally Friendly: Steel structures are almost 100% recyclable at the end of their life, aligning with green building principles. Construction involves less wet work, resulting in less noise and dust pollution.
5. High Degree of Industrialization: Design and manufacturing are highly mechanized and intelligent, fitting the trend of modern construction industrialization.

Common Applications:

• Long-span structures: Stadiums, airport terminals, railway stations, theaters.
• High-rise and super high-rise buildings: Office buildings, hotels.
• Industrial buildings: Factories, warehouses, power plants, petrochemical plants.
• Bridges: Large highway bridges, railway bridges.
• Temporary structures: Prefabricated houses, construction sheds.

2. What is a Sandwich Panel?

A sandwich panel is a lightweight composite panel made by bonding two outer metal layers (or layers of other materials) to a core insulation material in the middle using high-strength adhesives. It is a “cladding” material used for building envelopes.

Think of it as the “skin and clothing” of a building. It does not carry the main structural load. Its primary functions are enclosure, space division, while also providing thermal insulation, soundproofing, fire resistance, and decoration.

Core Structure: A “Sandwich” Structure

1. Top Skin / Bottom Skin:
   • Usually made of color-coated galvanized/aluminum-zinc steel sheets, stainless steel sheets, or aluminum-magnesium-manganese alloy sheets.
   • Function: Provides strength, weather resistance, waterproofing, and decoration.
2. Core Material:
   • Common core materials include:
     • Expanded Polystyrene (EPS): Commonly known as foam board. Good thermal insulation, low cost, but poor fire performance.
     • Polyurethane (PU): Excellent thermal insulation properties, high strength, better fire performance than EPS.
     • Rock Wool: Class A non-combustible material. Excellent fire resistance, thermal insulation, and soundproofing. It is a mainstream material for high fire-safety requirements.
     • Fiberglass Wool: Good thermal and acoustic insulation, but slightly weaker moisture resistance and strength.

Key Characteristics:

1. Lightweight and Efficient: Light in weight but offers excellent thermal insulation (low thermal conductivity) and soundproofing.
2. Easy Installation: Panels are prefabricated in factories and installed quickly on-site, shortening the construction period.
3. Aesthetic and Durable: Metal skins come in various colors and finishes (e.g., embossed), are decorative, and corrosion-resistant.
4. Variable Fire Performance: Fire performance depends entirely on the core material type. Rock wool panels are Class A non-combustible, while EPS panels are Class B combustible.

Common Applications:

• Walls, roofs, and doors for industrial plants and warehouses.
• Insulated walls for cold storage facilities.
• Internal and external partitions for office buildings and shopping malls.
• Walls and roofs for prefabricated buildings.
• Buildings with special requirements like clean rooms and hospitals.

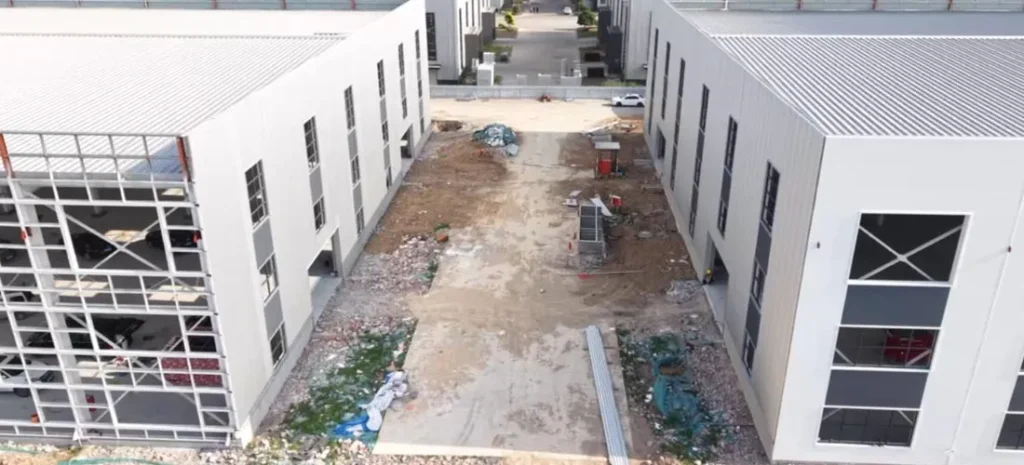

3. The Combination of Steel Structures and Sandwich Panels

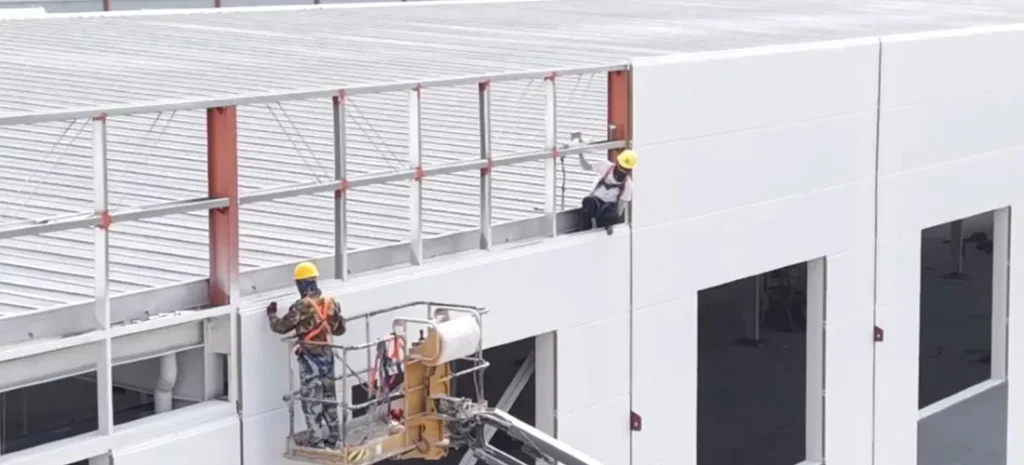

In practice, steel structures and sandwich panels are an excellent “golden combination.”

• Clear Division of Labor: The steel structure acts as the load-bearing skeleton, providing strength and stability. The sandwich panels act as the building envelope, cladding the skeleton to provide insulation, enclosure, and aesthetic functions.
• Complementary Advantages: Both share the characteristics of “factory prefabrication and on-site assembly,” making them perfectly compatible and enabling very fast construction of entire buildings. This combination is widely used in various industrial plants, logistics warehouses, sports facilities, commercial centers, etc.
